80078514
SPECIFICATIONS:
GENERAL | |

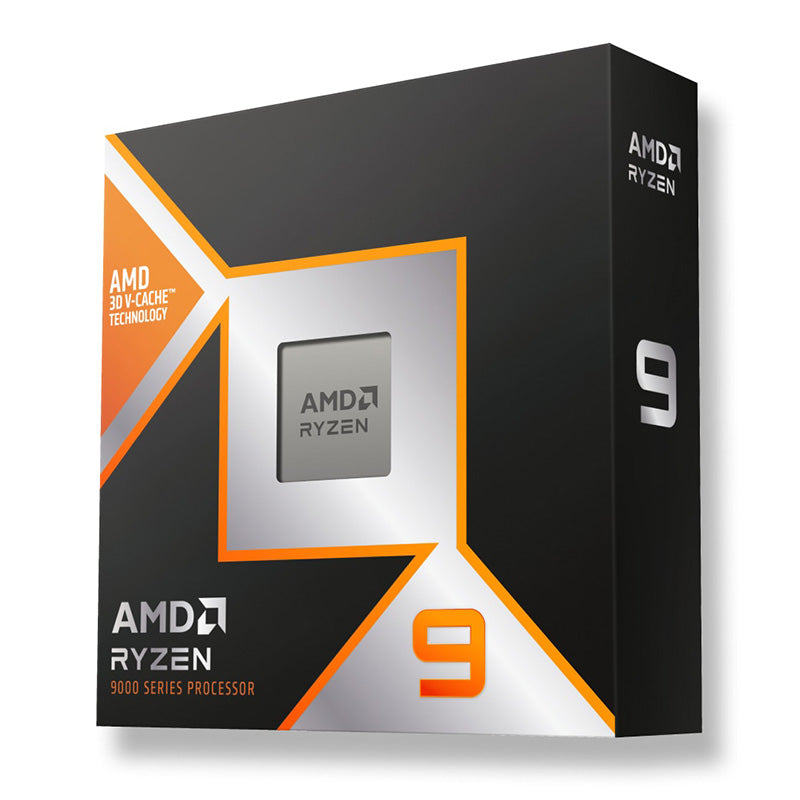

Name | AMD Ryzen ¢ 9 9950X3D |
Family | Ryzen |
Series | Ryzen 9000 Series |
Form Factor | Desktops , Boxed Processor |
AMD PRO Technologies | No |
Former Codename | Granite Ridge AM5 |
Architecture | Zen 5 |
# of CPU Cores | 16 |
Multithreading (SMT) | Yes |
# of Threads | 32 |
Max. Boost Clock | Up to 5.7 GHz |
Base Clock | 4.3 GHz |
L1 Cache | 1280 KB |
L2 Cache | 16 MB |
L3 Cache | 128 MB |
Default TDP | 170W |
Processor Technology for CPU Cores | TSMC 4nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
Package Die Count | 3 |
Unlocked for Overclocking | Yes |
AMD EXPO ¢ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen ¢ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Liquid cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 95 °C |
*OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit , Ubuntu x86 64-Bit |
CONNECTIVITY | |
Native USB 3.2 Gen 2 (10Gbps) | 4 |
Native USB 2.0 (480Mbps) | 1 |
PCI Express ® Version | PCIe ® 5.0 |
Native PCIe ® Lanes (Total/Usable) | 28 , 24 |
NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 192 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
GRAPHICS CAPABILITIES | |
Graphics Model | AMD Radeon ¢ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C ® DisplayPort ¢ Alternate Mode | Yes |
KEY FEATURES | |
Supported Technologies | AMD EXPO ¢ Technology , AMD Ryzen ¢ Technologies |
